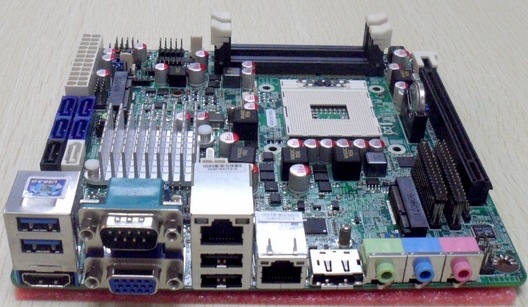

这是一款未来十年都不会被淘汰的工业主板，采用MINI-ITX结构,基于Intel QM77 芯片组，支持 Intel Core™ i3, i5, i7系列CPU, 集成GPU支持双显，支持VGA、DPI、LVDS和HDMI，可提供极佳的图形效果。具备丰富的I/O接口，包括4个COM口、2个LAN口，6个USB2.0接口或4个USB3.0 , 6个板载SATA接口、2个SATA III (支持6.0 Gb/s) 和4个SATA II (支持3.0 Gb/s)和一个MINI SATA接口。 还可以扩展2个COM口或者4个LAN口,满足各各行业领域的需要。
CPU
Supports Intel Core™ i3, i5, i7 Mobile Processors for Socket G (rPGA988)
Chipset
INTEL® QM77 Chipset
Memory
2 * SODIMM Sockets for un-buffered Dual CH DDR3 1333/1066 Max. up to 16GB
Expansion Slots
1 *PCIe x 16
2 * Mini PCI-E socket
Storage
2 * Serial ATA3 6Gb/s & 4 * Serial ATA2 3Gb/s connectors support RAID 0, 1, 5, 10
1 * mSATA socket (Selectable with full size Mini PCI-E socket)
Audio
Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN
Intel 82579LM & 82574L PCI-E Gigabit Ethernet LAN
LVDS
Onboard 24-bit dual channel LVDS connector
USB
Embedded 6 * USB 2.0/1.1 & 4 * USB 3.0
Special Features
Support ACPI S3
Support CPU Smart FAN
Support Watch Dog
Rear Panel I / O
2 * USB 2.0/1.1 ports & 2 * USB 3.0 ports
2 * RJ-45 port
1 * HDMI port
1 * COM port
1 * DP port
1 * VGA port
3 * Audio Phone Jack
Internal I / O
2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
1 * USB 3.0 headers for 2 USB 3.0 ports
CPU /NB / Chassis Fan connectors
3 * COM headers (COM4 for RS232/422/485)
1 * GPIO header
1 * CIR header
1 * Chassis Intrusion header
1 * AUDIO header
1 * 24-pin & 4-pin 12V ATX Power connectors
BIOS
AMI EFI 64MB SMT Flash ROM
Form Factor
Mini-ITX Form Factor (170mm x 170mm)
Functional
ATM, Automation, Medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation, NAS
Certificate
CE, FCC, RoHS
Temperature
Operating within 0~60 centigrade
Storage within -20-85 centigrade
